Tableau sets allow you to isolate specific segments of a dimension, which can then be used in several different ways to find insights in your data. This post provides instructions on how to build sets as well as five different ways they can be used to enhance your analyses.

Sets can be thought of as custom segments, but unlike dimension fields, they are always binary. In other words, you are either in the set or not. Other than that one restriction, sets can be created for just about anything. You can pick individual dimension members to place in a set, have sets be based on quantitative thresholds, created with the top or bottom performing dimension members, and more.

Watch the related video with Playfair+



How to create a set in Tableau

Similar to creating filters in Tableau, sets can be created in a couple of different ways. The first and most straightforward method is to simply select the dimension members on a view, then hover over one of the dimension members, click on the Venn diagram icon that appears, and choose “Create Set…”. Here’s what that would look like if I wanted to create a set from the top 20 customers by sales in the Sample – Superstore dataset:



Practical Tableau: An Introduction to Sets

After clicking on “Create Set…” and giving the set a name, the set will appear on the Sets area of the Data pane on the left side of the authoring interface. This set that tells us whether each customer name is in or out of the top 20 customers by sales is now available to use in our analyses. Note that sets created with this method are static, so the top 20 will not dynamically change should a new customer enter the top 20.

Live Tableau Training
May 14 – 17, 2024

Learn directly from industry-leading experts, access hundreds of post-training resources, and more.

You can also create a set by right-clicking on the dimension the set will be created from on the Dimensions area of the Data pane, hovering over “Create”, and clicking “Set…”. After following the preceding steps on the Customer Name dimension, the following dialog box appears:

Create Set Dialog Box

The first tab provides the ability to manually pick and choose the dimension members to be included in the set as we have done with the first method above. The remaining two tabs can be used to base the set on a condition or “Top N”, respectively. Computed sets like this will dynamically change when the dataset is updated. Whichever method you choose to create your set, a new field will be created to use in the following examples.



Five ways to use sets

As a filter

Sets can be used as a filter by right-clicking on a set from the Sets area of the Data pane and choosing “Show Filter”. Sets are binary, so when you add them as a filter, the default behavior is to only allow you to choose whether the marks on the view are in or out of the set. Here’s how my bar chart of sales by customer name in descending order looks after showing the filter for Top 20 Customers by Sales and keeping only the names that are in the set:

Filtering the Top 20 customers by sales with sets in Tableau



To encode marks

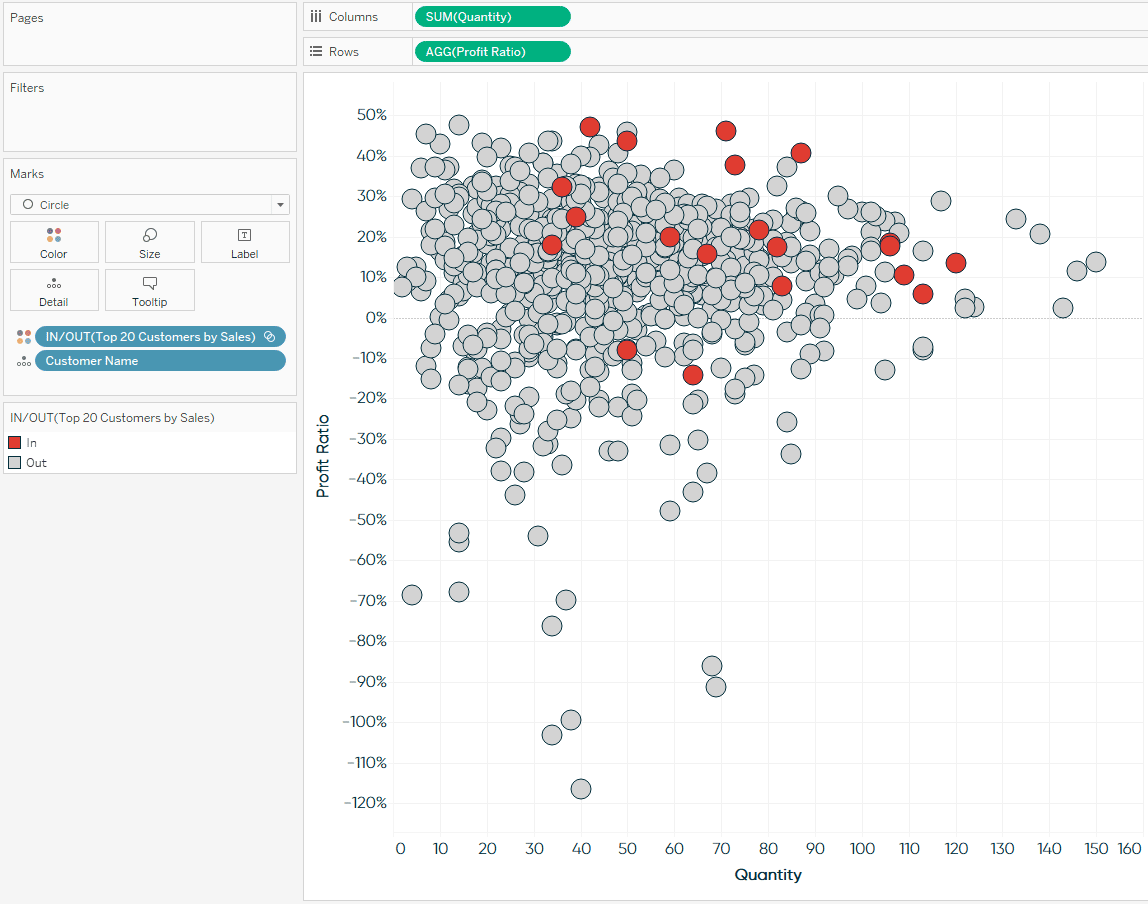

You can encode marks on a view by a set by dragging the set from the Sets area of the Data pane to the Color Marks Card. Here’s an example where I’ve done this to make the top 20 customers by sales stand out on a scatter plot:

Highlighting a scatter plot using sets in Tableau



In calculated fields

Sets can be used in calculated fields just like dimensions or measures. This way you can treat dimension members differently based on whether or not they are in a set. Here is a simple example being used to rename the sets:

Using Tableau Sets in a Calculated Field

This formula is saying that if a customer name is in the set, name the set “Top 20 Customers”; otherwise call it “Other”. Note that this example is used to show you that sets can be used within calculated fields, but this same renaming could have been accomplished by editing the aliases of the set.



As dimensions

Sets can be used just like dimensions in that if you add a set field to the Columns Shelf or Rows Shelf, the view will be “sliced and diced” by that field. Here is how my scatter plot from earlier looks if I create two separate columns for in and out of the set by dragging the set from the Sets area of the Data pane to the Columns Shelf:



Within a custom hierarchy

Sets can be used as part of a custom hierarchy in Tableau, which allows you and your end users to easily drill down and back up across different dimensions. For example, you may want to create a hierarchy with customer names that starts with the Top 20 Customers by Sales set, then drills down to individual customer names, then to their segment.

Create a custom hierarchy by selecting the Customer Name and Segment dimensions, right-click, hover over “Hierarchy”, and choose “Create Hierarchy…”. Once the custom hierarchy is created, you can drag the Top 20 Customers by Sales set into the hierarchy on the Dimensions Shelf and re-arrange them to the desired order of the drilldown. At this point, I see this hierarchy on the Dimensions area of the Data pane:

Creating a Custom Hierarchy with Sets in Tableau

Now that the hierarchy is in place, if I replace the Customer Name dimension with the Top 20 Customers by Sales set dimension in the bar chart example from above, I will be able to drill down from the top 20 set, to customer name, to segment. This is accomplished by clicking the “+” symbol on the field(s) on the Rows Shelf.

Receive More Free Tips & Tricks Like This Every Week

Let’s stay in touch:

Playfair+Envelope

Sales by in/out of set:



Sales by in/out of set and customer name:



Sales by in/out of set, customer name, and segment:



Thanks for reading,
– Ryan



This content is excerpted from my book Practical Tableau: 100 Tips, Tutorials, and Strategies from a Tableau Zen Master published by O’Reilly Media Inc., 2018, ISBN: 978-1491977316. Get the book at Amazon.
